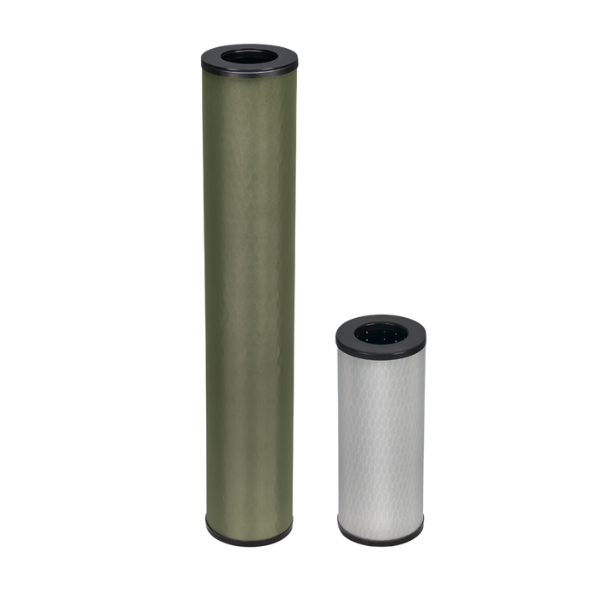

Separator element 60-Type

Separator elements are used as the second stage of a high-performance separation in filter/water separators. After emergence from the coalescer, aviation fuels pass through the pores of the separator element while water droplets are repelled by the hydrophobic separator surface. Water droplets settle into the filter/water separator sump to be drained off.

FAUDI Aviation’s elements are available with a Teflon®-coated screen or synthetic mesh. Separator elements with a Teflon®-coated screen can be reused after a cleaning during coalescer element changeouts. Small areas of damage can be temporary repaired. It is recommended that separator elements with a synthetic mesh are replaced during coalescer changeouts.

Technical data:

• Qualification: EI 1581 7th Edition, Category C
• Flow direction: Out-to-in
• Service time (max.): 10 years* / 3 years*
• Storage time (max.): 5 years*
• Operating temperature: -30 °C (-22 °F) / Max. 80° C (176° F)

*Manufacturer recommendation (Difference in Teflon® / synthetic mesh)

Standard design:

• Gaskets: NBR (Buna-N)
• End caps: Polyamide, glass fibre reinforced / Epoxy-coated steel
• Labeling: According to EI specification
