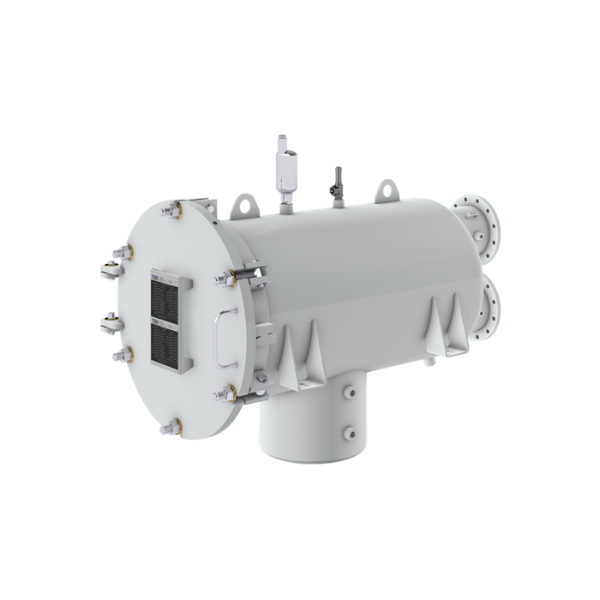

Filter/water separator - FW10-H-T Series

Horizontal filter vessels for fixed installation

The filter/water separator FW10-H-T is designed to be compliant with procedural guidelines, applicable legal regulations and the relevant pressure vessel regulations. Filter/water separators consist of two-stages designed to remove free water and particulates from aviation fuels. The filter vessels incorporate flat sealed or threaded base coalescer elements and reusable separator elements.

Features:

• Comparatively reduced weight
• Comparatively downsized
• Easy maintenance
• Simplified element change
• Proven technology

Technical data:

• Qualification: EI 1581 7th Edition, Category C, Type S-LW
• For military applications: EI 1581 7th Edition, Category M, Type S
• Design & construction: EI 1596
• Design pressure: Designed to pressure requirements
• Flow rate: Up to 5026 lpm (1327 USgpm)

Standard design:

• Material: Carbon steel (other version on request)
• Interior: Epoxy coating according to EI 1541
• Exterior: Prime coated
• Cover seal: NBR (Buna-N)
