Dirt defence filter

Dirt Defence Filter (DDO) are designed for the efficient and continuous removal of solids such as rust, sand and other particulates from aviation fuels.

FAUDI Aviation DDO-Type filter elements are primarily used in the filtration of mobile into-plane refueling. Dirt Defence Filters are an economical and reliable alternative to filter monitor elements and its associated SAP* (Super Absorbent Polymer) problem.

Dirt Defence Filters shall be used in conjunction with the AFGUARD® Electronic Water Sensor (EWS). The EWS technology becomes the data source for highest performance and service life of filter elements - we call it simply PerformanceBasedFilterLife™.

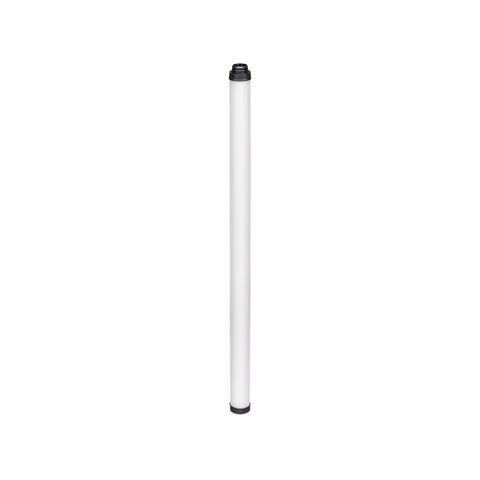

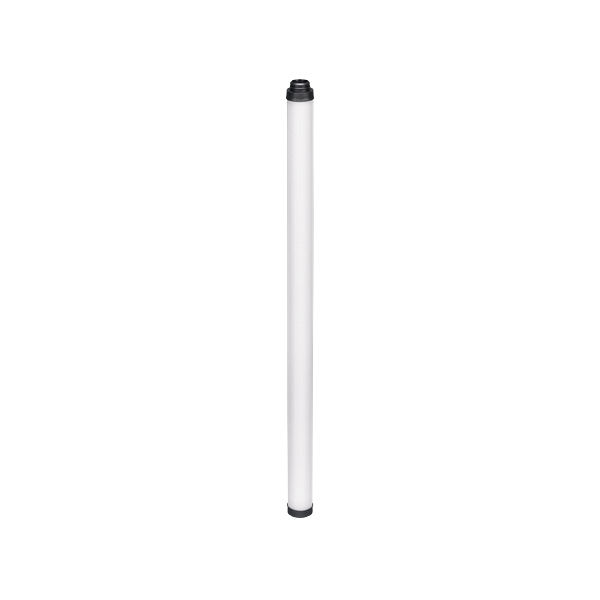

2" Dirt Defence Filter

Technical data:

• Qualification: EI 1599 2nd Edition
• Nominal filtration: According to EI 1599 2nd Edition
• Flow direction: Out-to-in
• Changeout differential pressure: 1.5 bar (22 psi) acc. to JIG Standard / 1.0 bar (15 psi) acc. to ATA Specification 103
• Service time (max.): 7 years*
• Storage time (max.): 5 years*
• Operating temperature: -30 °C (-22 °F) / Max. 80° C (176° F)

*Manufacturer recommendation

Standard design:

• Outside diameter: 50 mm (2 inch)
• Center tube: Painted steel
• Gaskets: NBR (Buna-N)
• End caps: Polyamide, carbon fiber reinforced
• Labeling: According to EI Specification

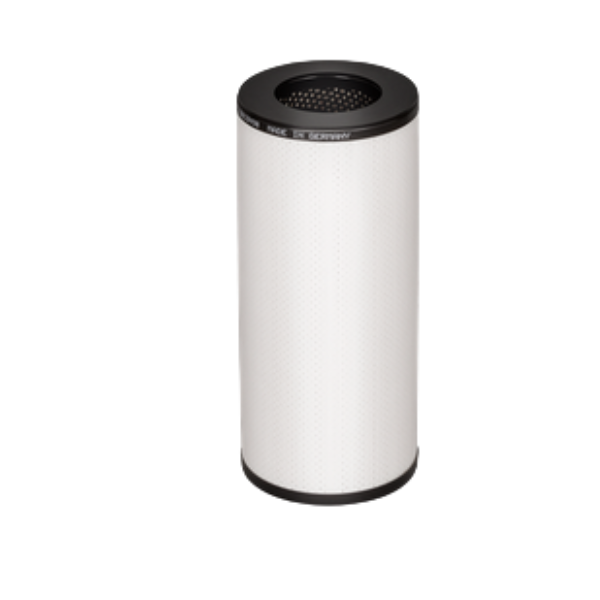

6" Dirt Defence Filter

Technical data:

• Qualification: EI 1599 2nd Edition
• Nominal filtration: According to EI 1599 2nd  Edition
• Flow direction: Out-to-in
• Changeout differential pressure: 1.5 bar (22 psi) acc. to JIG Standard / 1.0 bar (15 psi) acc. to ATA Specification 103
• Service time (max.): 7 years*
• Storage time (max.): 5 years*
• Operating temperature: -30 °C (-22 °F) / Max. 80° C (176° F)

*Manufacturer recommendation

Standard design:

• Outside diameter: 152 mm (6 inch)
• Center tube: Epoxy coated steel
• Gaskets: NBR (Buna-N)
• End caps: Polyamide, glass fiber reinforced / Epoxy coated steel
• Labeling: According to EI Specification
