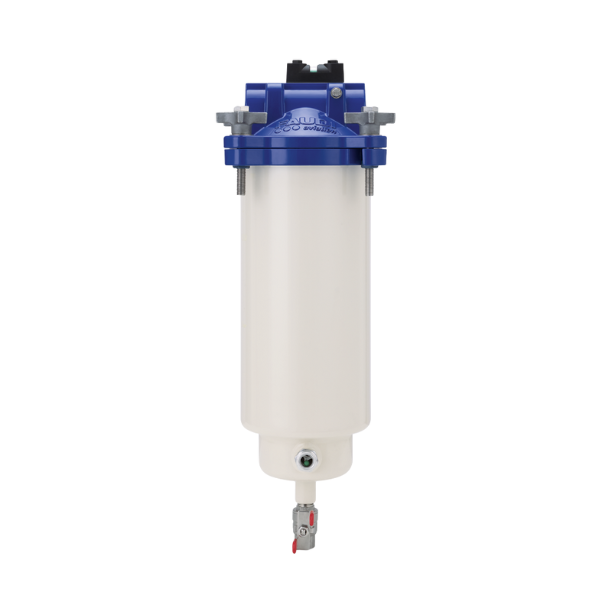

Filter/Water separator VFH serries

Vertical filter vessel for mobile or fixed installation

The Vertical Filter Housing (VFH) assembly provides two element options to meet the requirements in the aviation fuel filtration industry: Coalescer/Separator and Microfilter (Prefilter).

The VFH system fascinates by high economic efficiency as well as an easy installation. It is designed and constructed for easy element change-out. For use with JET Fuel, AVGAS and MoGas.

Features:

• Comparatively low acquisition costs
• Filter elements are characterized by excellent dirt holding capacity and high separation efficiency
• Easy maintenance
• Simplified element change

Technical Data:

• Design pressure: 10 bar (145 psi)
• Flow rate: up to 177 lpm (46 USgpm)
• Operating temperature: -10°C to +50°C (14° to 122°F)

Standard Design:

• Material: Carbon steel (other version on request)
