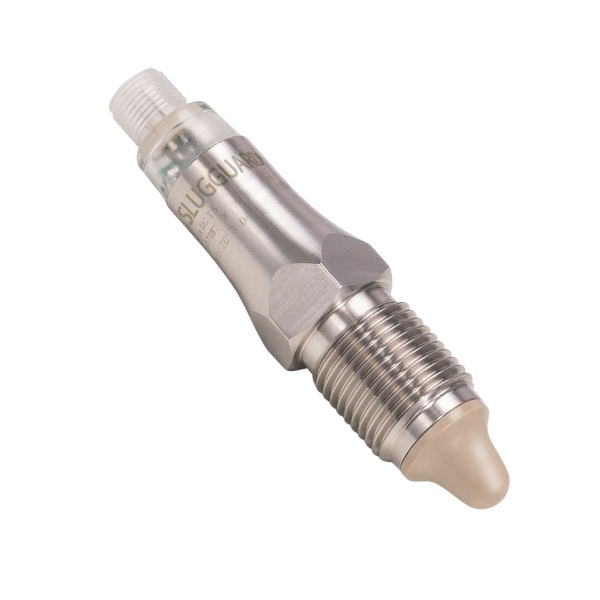

Electronic Bulk Water Sensor to distinguish between diesel fuel and water. The SLUGGUARD® enables continuous detection of water in sumps of filter/water separators or in drain points of filter vessels. The high-precision switch is also suitable for compact filter housings.
A blue LED light indicates operating or alarm switching states.
Features:
Short immersion length for installation even in narrow pipe diameters
Long-life stainless steel housing
Precise distinction between phases
Electronic Bulk Water Sensor to distinguish between diesel fuel and water. The SLUGGUARD® enables continuous detection of water in sumps of filter/water separators or in drain points of filter vessels. The high-precision switch is also suitable for compact filter housings.
A blue LED light indicates operating or alarm switching states.
Features:
Short immersion length for installation even in narrow pipe diameters
Long-life stainless steel housing
Precise distinction between phases
Technical data:
Measurement: Radiated signal
Linear analog output signal: max. 20mA
Contact load: 12...30 V DC
Hazardous area approvals (ATEX): Ex ia IIC, ATEX II 1G, Ex ta IIIC T100 Da, ATEX II 1D, Ex NA II T5, ATEX II 3G
Protection class: IP 67, IP69K (with appropiate cable)
Operating temperature range: -40 °C to + 85 °C (-40 °F to 185 °F)
Storage temperature range: -40 °C to + 85 °C (-40° F to 185 °F)
