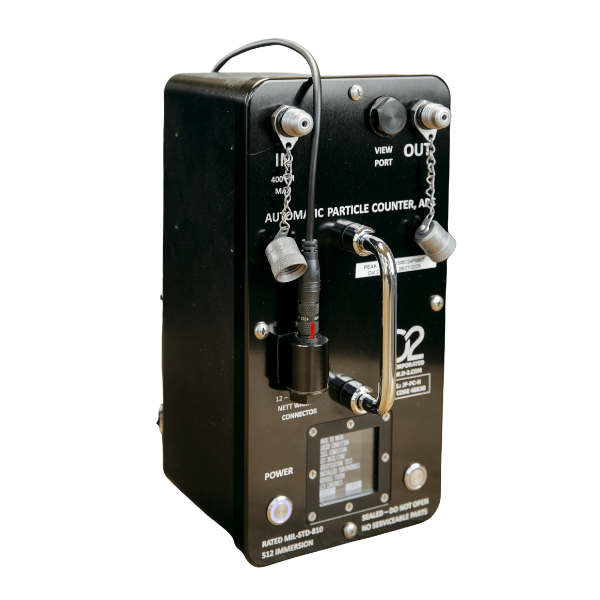

Automatic portable particle counter

Features:

• Field Portable and Laboratory Use Light Obscuration Particle Counter

• ISO 11171:2020 Calibrated

• ASTM D7619 Equivalent

• ISO 4406 Reporting

• Optional Conductivity & Density

• High Resolution Color Display

• Simple Two Button Operation

• Military Hardened and Ruggedized for Field Operation (Drop Tested)

• High Speed Flush

• Back Flush Capable

• 1620 Hydraulic Sample Couplings

• 110/240 VDC or Battery Powered

• Sample/Location Identifier Input

• Waterproof IP67

Technical data:

• Reporting: >4μ(c), >6μ(c), >14μ(c), >21μ(c), >25μ(c) & >30μ©

• Results format: Cumulative, Particles/ml, ISO 4406 Cleanliness Codes

• Memory: 400 Test points, All Test Data (Fully Resettable)

• Programmability: User Programmable: RS232 Serial Commands, Optional Y-Cable @ 57600 BAUD

• External Data Output: Memory Output to PC or SERIAL Printer Optional Y-Cable @ 19200 BAUD

• USB: No

• Alarm Limits: User Programmable for each defined fuel, max 5 fuels. (Pass Fail indicated by: Green/Red Display Background and Right Button LED)

Standard design:

• Construction: Aluminum Case – Powder Coated

• Environmental: IP67, MIL-STD-810 Method 512-Immersion Proce dure 1 (1 meter, 5% salt, 30 minutes), -30°C to 50°C Sample & Operating Temperature

• Test Duration: 2.5 Mins

• Test Pressure: (Max) 27.5 Bar (400psi)

• Viscosity: (Max) 64mm2/S

• Flow Rate: 0ml/min Test – 60ml/min Flush

• Sample Delivery: Integral Syringe Pump And Change Over Valve
