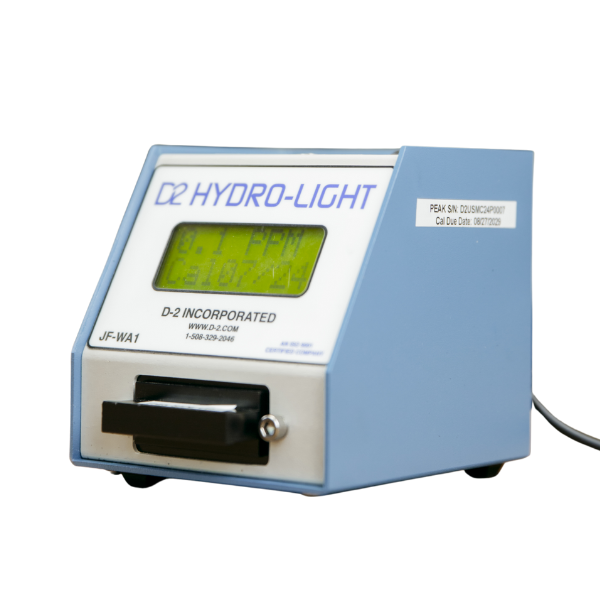

Hydrolight – Digital free water detector for jet fuel

The JF-WA1 Hydro-Light ASTM D3240 Digital Free Water Detector for Jet Fuel revolutionises the testing of free water in aviation fuel. The Hydro-Light provides results efficiently through a straightforward, one-step measurement process. Simply place the pad in the slide, insert the slide into the machine, and read the digital display, which indicates the free water content of the fuel up to 50 PPM. This device is utilised to conduct the ASTM Test Method D3240. The Hydro-Light significantly enhances the accuracy and reliability of the ASTM D3240 test method by eliminating human error and delivering digital results.

Features:

• 0 to 50 ppm Free Water Measurement

• 0.1 pp, resolution

• LED Light Source

• Two-Line, 8 characters per line, backlit Display

• 3 second update rate

• Simple with little or no Instruction needed

• Supplied with Verification Shuttle (10 years Life)

• ASTM D3240

• No calibration (if within Valid Verification test or 10 years)

• Military Environment Tested – Shock, Vibration, Environmental

• 500ml Sample Volume

• In Field Operation

Technical data:

• Measurement Technology: LED Source Amplified Photodiode Receiver, Microprocessor Controlled, All Solid-State Electronics

• Display: Two-Line, backlit LCD

• Time to Read/Update: <3s

• Range: 0 to 50 ppm

• Precision: +/- 0.5 ppm (follows ASTM D3240 r & R)

• Resolution: 0.1 ppm

• Calibration: Supplied with Verification Shuttle with 10 Year Life

• Pad Specifications: 25mm Pad with Fluorescein Dye
