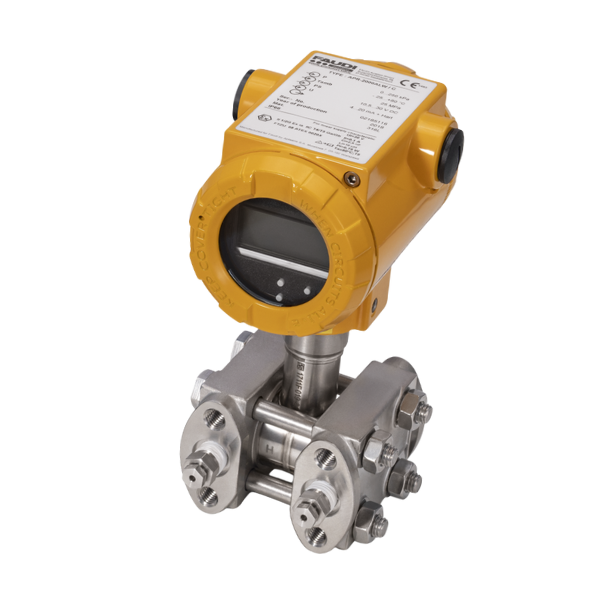

DP-Transmitter

Differential pressure transmitter with metal sensor for the measurement of pressure differences in aviation fuels. The 3-button operation allows easy and reliable start-up. The integrated data module enables easy management of important process and device parameters.

Features:

• Best accuracy, reproducibility and long-term stability
• Simple, menu-driven commissioning via display, 4 to 20 mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
• HistoROM data management system for quick and easy commissioning, maintenance and diagnostics
• Cost savings through modular concept for easy replacement of sensor, display or electronics

Technical Data:

• Power supply: 10.5 ... 45V DC
• Signal voltage: 18 - 30 VDC, Ex ia: 10.5 ... 30V DC
• Measuring ranges: 0.25 mbar to 40 bar
• Low pressure resistance: 50 mbar
• PROFIBUS PA: 9 ... 32 V DC (not Ex)
• FOUNDATION Fieldbus: 9 ... 32 V DC (not Ex)
• Operating temperature range: -40 °C to 85 °C (-40 °F to 185 °F)
