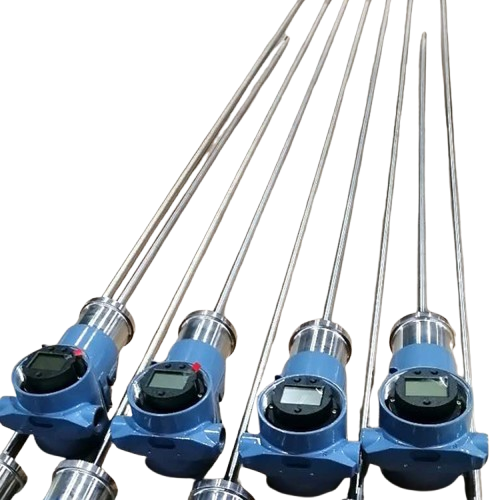

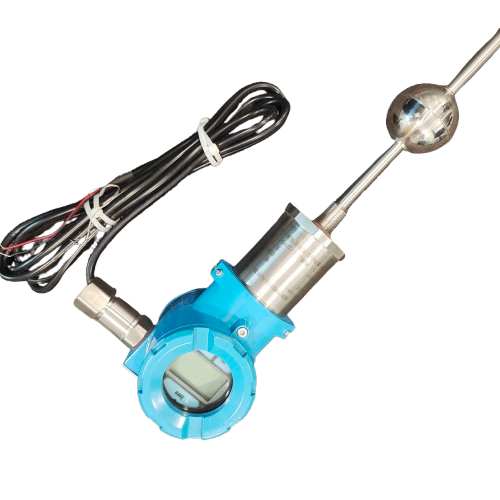

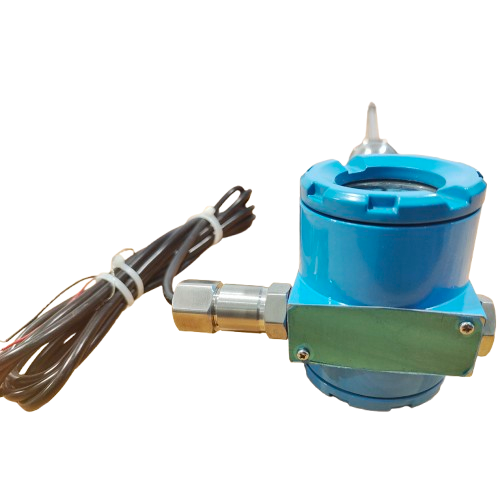

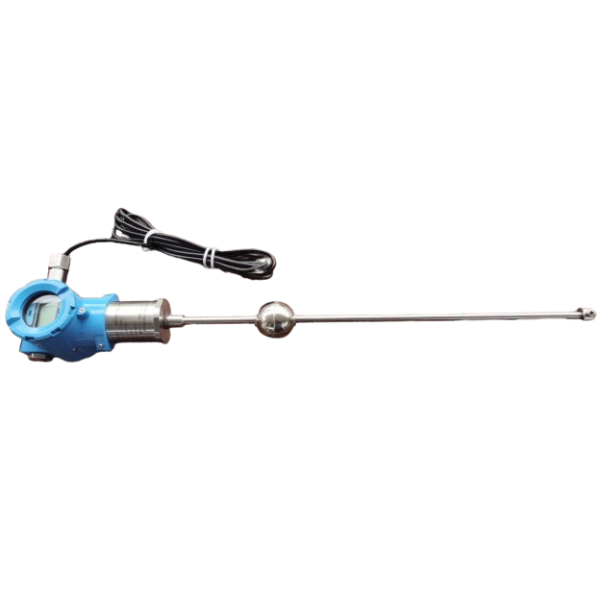

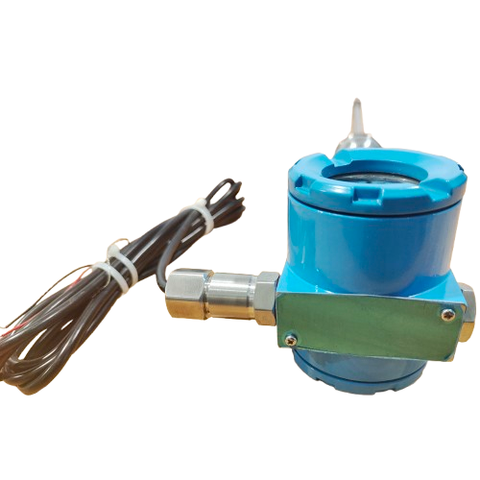

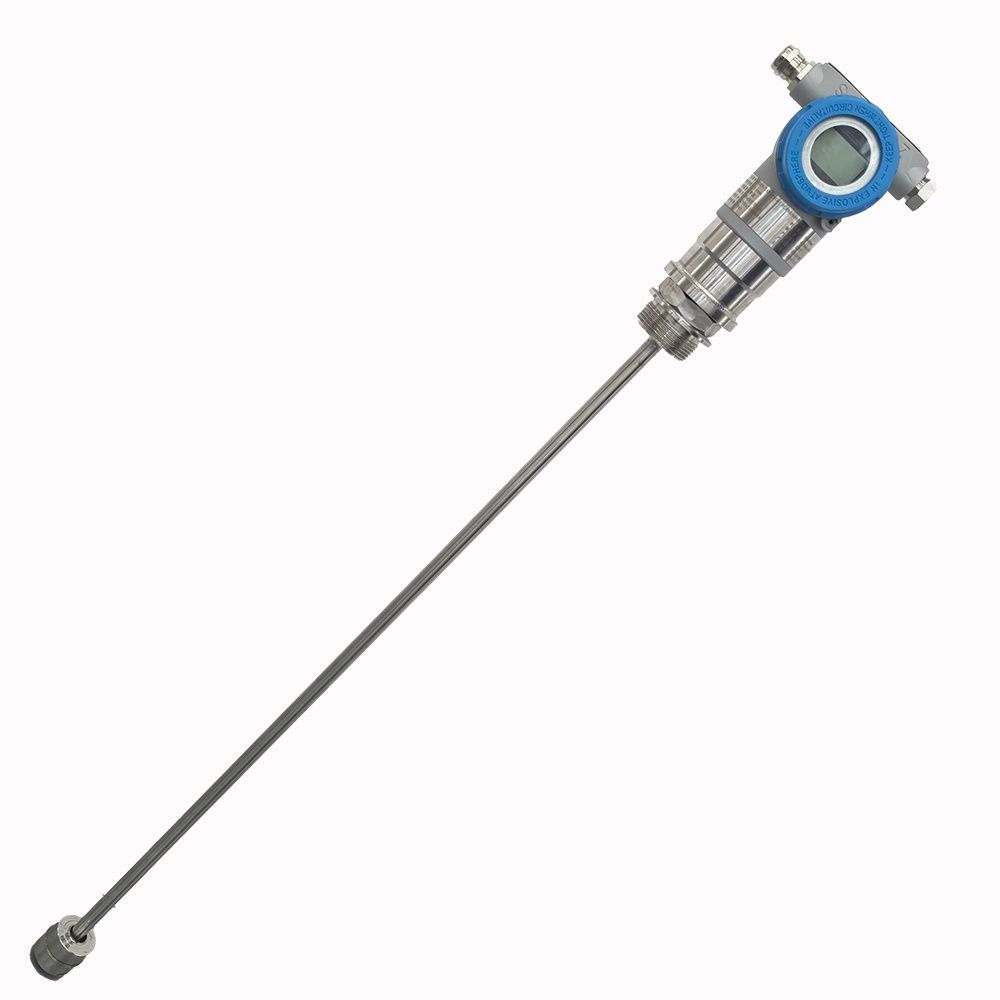

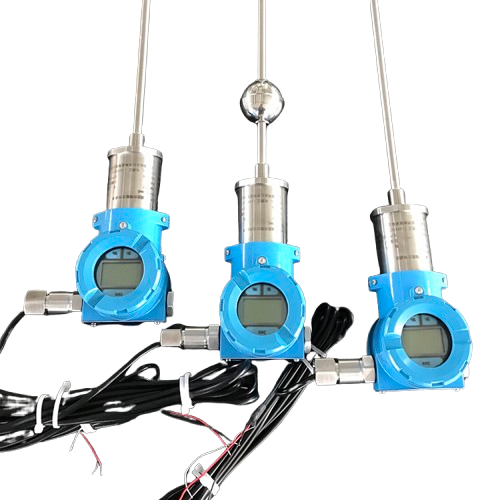

Vacorda UHF-C anti-RF magnetostrictive liquid level gauge and magnetostrictive level sensor

Status: In stock
SKU: Đang cập nhật

Advantages

  • High accuracy, high repetitive measurement, stable and reliable performance
  • Multiple signals are optional,
  • The zero point and full degree are 100% in the measurement range
  • Anti-RF interference and lightning protection design
  • It does not require regular calibration and maintenance
  • The installation method is flexible and easy
Contact

Advantages

  • High accuracy, high repetitive measurement, stable and reliable performance
  • Multiple signals are optional,
  • The zero point and full degree are 100% in the measurement range
  • Anti-RF interference and lightning protection design
  • It does not require regular calibration and maintenance
  • The installation method is flexible and easy
  • It has strong pollution resistance and is suitable for harsh industrial environment
  • Rigid rod structure.The pressure bearing performance is good
  • Flexible construction.Solve the problem of super-long-range measurement, convenient transportation and installation
  • Corrosion structure in strong corrosion environment



Technical Parameter

Outputs

Digital—SSI, Modbus

Analog—voltage, current

Measured Position

SSI—1 position

Modbus—1~3 position

Analog—1~2 position

Range

50~76000mm

Power Supply

 24V

Communication

EIA-RS485/RS422

Update Time

SSI, Modbus: length 100 300 750 1000 2000 5000

Frequency 4 3.7 3.0 2.3 1.2 0.5KHz

Operating Temperature

-40° C~+85° C

Storage Temperature

0° C ~+70° C

Probe Endure pressure

Less than 34MPa

Insulation

500VDC
