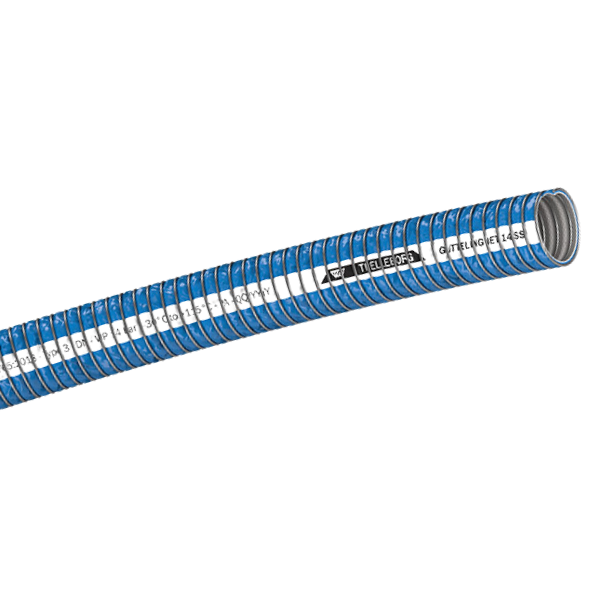

Trelleborg Gutteling Jet 14

Features:

• Capable of handling solvents.
• Easy handling due to hose flexibility (low bending radius).
• Electrical conductivity ensured by the two helices.

Applications:

Suction and discharge for light or heavy petroleum products and derivatives with aromatic content up to 100%. Specially designed for bio-diesel products. Also suitable for Jet A1, AVGAS, and kerosene.

Design:

• Inner tube: For DRY: polyamide film; For WET: nylon and PTFE film.
• Reinforcement: For DRY: polypropylene and polyamide layers; For WET: nylon and PTFE layers.
• Cover: For DRY: PVC coated fabric, corrugated; For WET: PET and PVC coated fabric, corrugated.
• Temperature range: -30 to +100
• Standard/Approval: All types of crimped couplings available.
  2 Types of sealing: DRY sealing for the standard range from 25 to 100mm; WET sealing for the premium range from 100 to 300mm, improving reliability, durability and safety.
• Max. vacuum: 0.9 bar.
