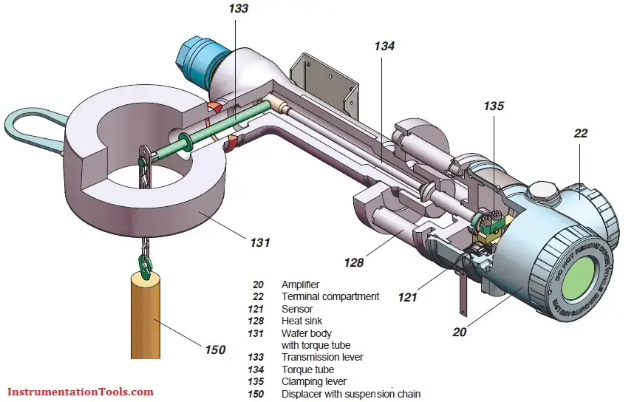

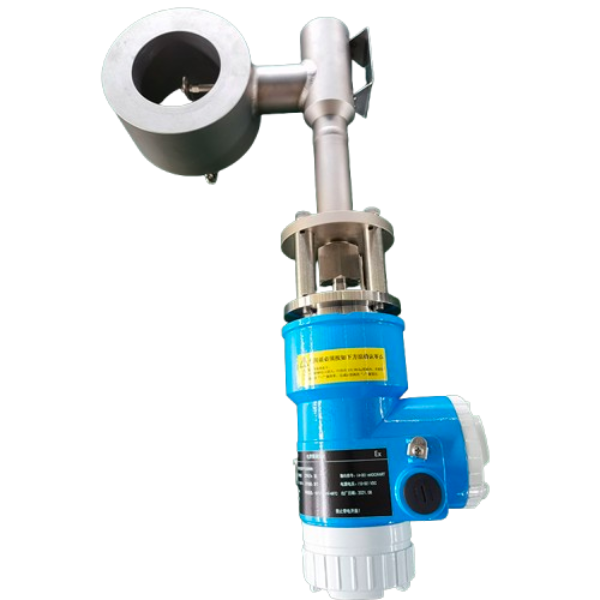

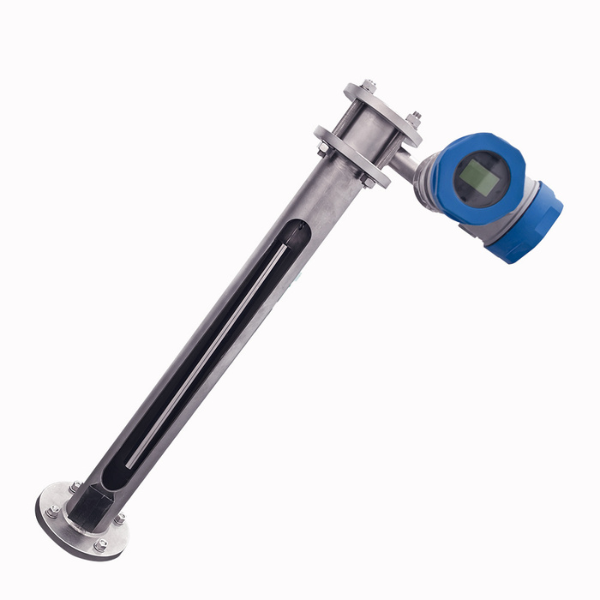

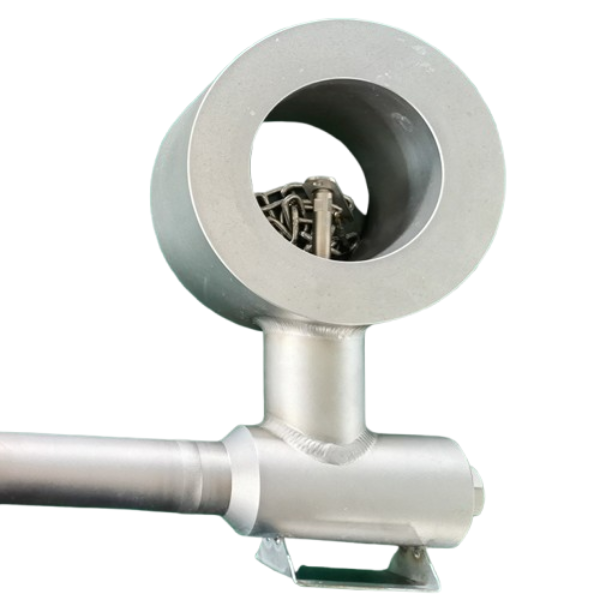

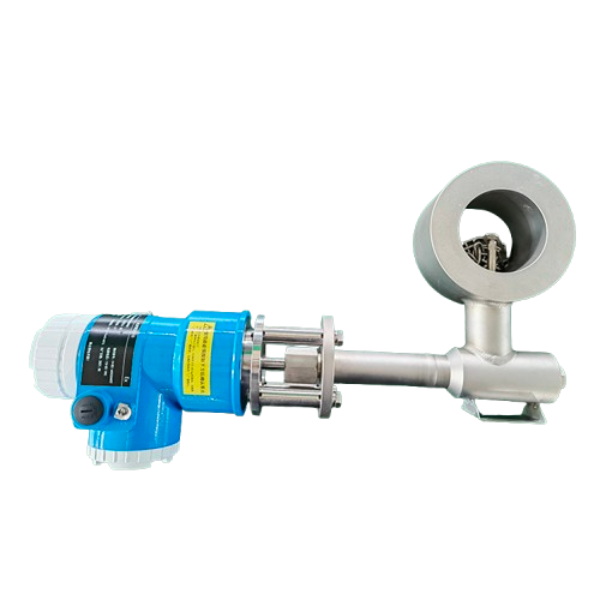

The buoyancy force of the displacer is transferred via transmission lever and torque tube to operating rod of the sensor, where it acts on free end of sensor element.Four thin film metal strain gauge elements are sputtered onto sensor element, which change their resistance in the ratio of the tensile or pressure tension. These four thin film metal strain gauge elements are connected as a Wheatstone full bridge supplied from amplifier.
The voltage at the diagonal bridge section which is proportional to the effective weight is fed to the electronic amplifier as an input signal. This voltage is converted via the electronic amplifier into the 4 to 20 mA or digital two-wire output signal. The amplifier is supplied by the signal current circuit in two wire mode.
The buoyancy force of the displacer is transferred via transmission lever and torque tube to operating rod of the sensor, where it acts on free end of sensor element.Four thin film metal strain gauge elements are sputtered onto sensor element, which change their resistance in the ratio of the tensile or pressure tension. These four thin film metal strain gauge elements are connected as a Wheatstone full bridge supplied from amplifier.
The voltage at the diagonal bridge section which is proportional to the effective weight is fed to the electronic amplifier as an input signal. This voltage is converted via the electronic amplifier into the 4 to 20 mA or digital two-wire output signal. The amplifier is supplied by the signal current circuit in two wire mode.

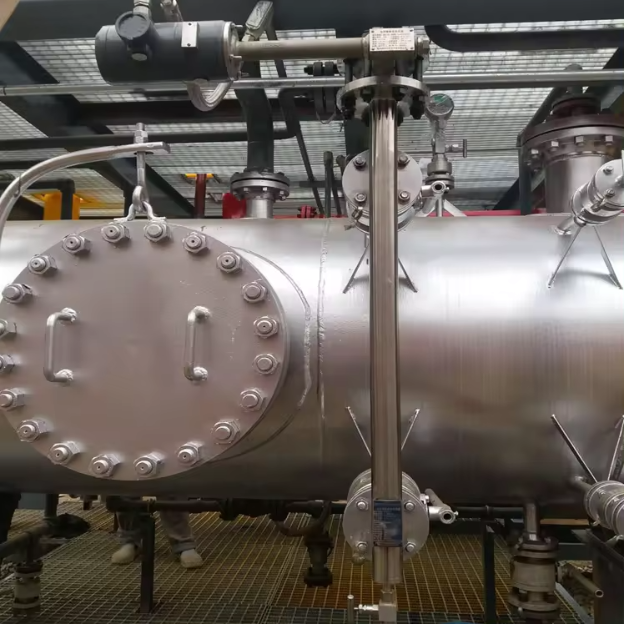

Steam Boiler Level Gauge Technical Parameters
|
Recommended center-center distance: |
300, 500, 800, 1100, 1400,1700,2000mm(custom made) |
|
Indicate mode: |
single color, bicolor(red as vapor phases, green as liquid) |
|
Material: |
carbon steel, 304,316L, 1Cr18Ni9Ti, 0Cr18Ni9, 304 with PTFE lining |
|
Nominal pressure: |
PN6-PN100(×0.1MPa) |
|
304 +PTFE≤PN40 |
|
|
PP≤100°C |
|
|
Process flange: |
DN20/RF HG/T 20592-09 |
|
The heat steam interface: |
ZG1/2"male screw thread |
|
The heat steam pressure: |
≤1.0Mpa |
|
Eclectic heating: |
self-limiting temperature heating (unnecessary for anticorrosive type) |
|
Steel ball self-closing pressure: |
≥0.3Mpa |
|
Power supply: |
24V DC, 36V AC |
|
Environment temperature: |
--70℃~+450℃ |

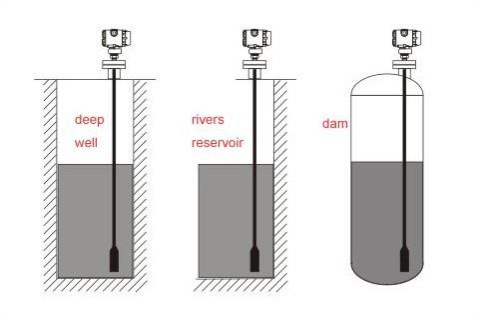

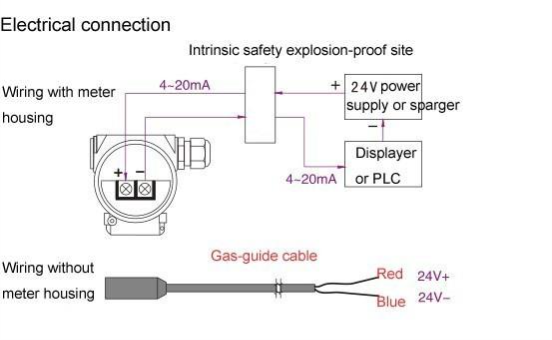

Key Applications of HBY304 Hydrostatic Water Level Transmitter
1.Water Supply & Wastewater Treatment，
Monitoring water levels in reservoirs, tanks, and wells.
Controlling pump operations in sewage treatment plants.
2.Industrial Process Control
Liquid level measurement in chemical storage tanks, fuel tanks, and industrial boilers.
Ensuring optimal levels in cooling systems and hydraulic systems.
3.Agriculture & Irrigation
Monitoring water levels in irrigation channels, ponds, and dams.
Automating water distribution in precision farming.
4.Environmental Monitoring
Groundwater level measurement in boreholes and wells.
Flood warning systems in rivers and lakes.
5.Marine & Offshore Applications
Measuring ballast water levels in ships.
Monitoring tidal and seawater levels.
6.Oil & Gas Industry
Detecting liquid levels in storage tanks and separators.
Wellbore monitoring in oilfields.
