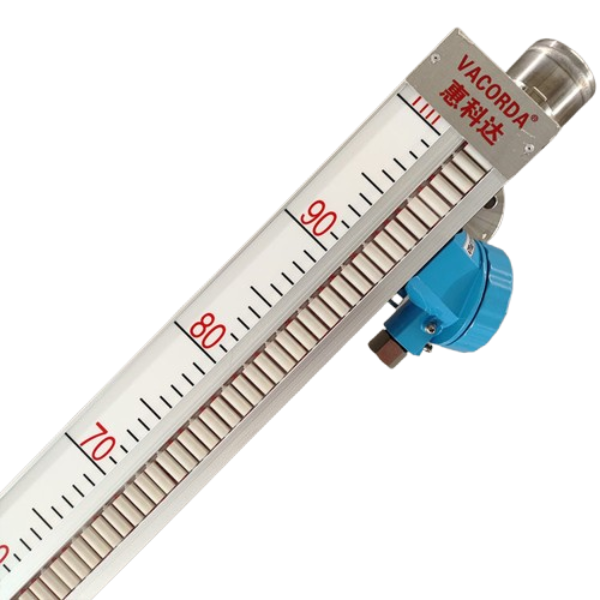

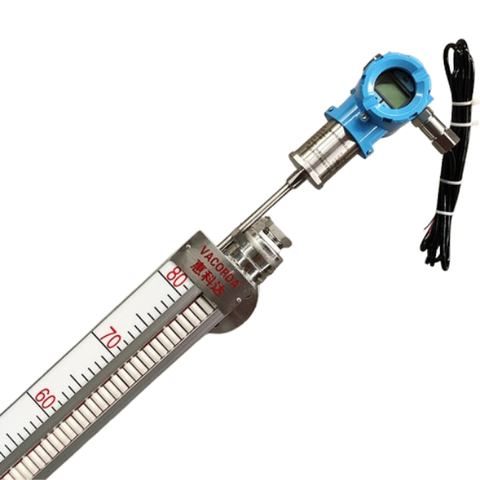

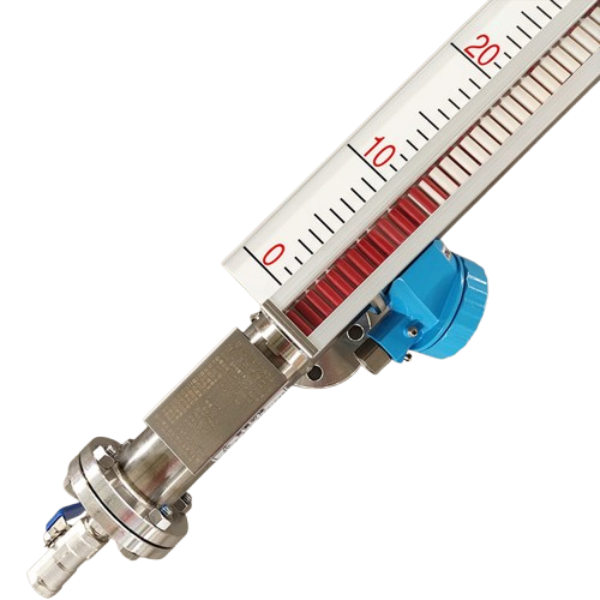

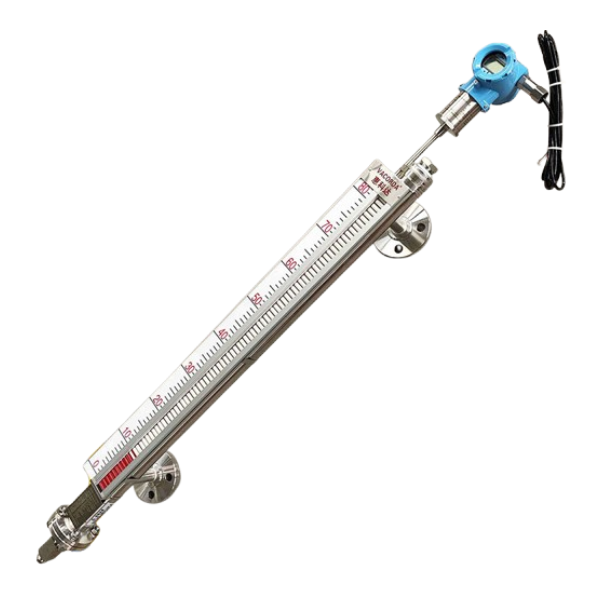

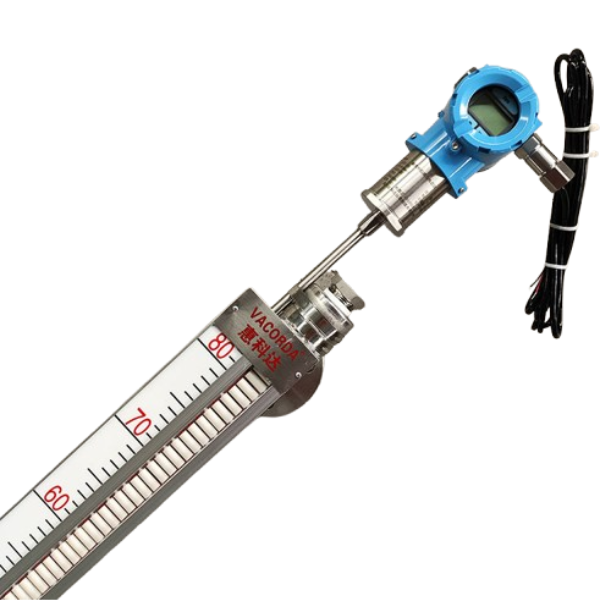

UHC magnetic liquid tank level gauge with level sensor

UHC magnetic liquid tank level gauge with level sensor

Features:

Simple structure, good stability, reliability and durability.
Isolated medium, indicator, transmitter and switch
Wide range of operating pressure: vacuum to 42Mpa
Wide range of operating temperature: -190℃ to 425 ℃
Independent of medium’s physical and chemical states.
SPST or SPDT available
Optioning float level transducer, capacitive two-wire level transducer and Magnetostrictive level sensor to transmit 4-20mA DC signal (or HART) and realize remote control and measurement.
Two-wire level transducer can be with LED digital indicator for night observation.

Mô tả sản phẩm

Features:

Simple structure, good stability, reliability and durability.
Isolated medium, indicator, transmitter and switch
Wide range of operating pressure: vacuum to 42Mpa
Wide range of operating temperature: -190℃ to 425 ℃
Independent of medium’s physical and chemical states.
SPST or SPDT available
Optioning float level transducer, capacitive two-wire level transducer and Magnetostrictive level sensor to transmit 4-20mA DC signal (or HART) and realize remote control and measurement.
Two-wire level transducer can be with LED digital indicator for night observation.

Product Specifications

C-C Distance	150~6000mm(more than 6m can be specially customized）
Medium Density	＞0.45g/cm³
Nominal Pressure	PN63~PN420 (x 0.1MPa)
Material	304,316L,1Cr18Ni9Ti,0Cr18Ni9,00Cr17Ni14Mo2,321, titanium alloy or customize
Operating Temperature	-190 ~ +425 °C
Top Structure	Vent plug/valve，welding cover with air valve, flange with plug screw, welding cover with 1/2"NPT
Bottom Structure	Drain plug/valve, welding cover with plug screw or 1/2"NPT, flange with plug valve or ball valve
Indicate Ruler	A: Al &ABS flap cylinder	D:316L.& Al flap plate
	B: Al flap plate	E:316L/AI &LED
	C:316L flap cylinder	F:316L/AI &LED
Protection Class	IP65,IP67
Optional Items
Magnetic Alarm Switch	switching state: SPST; SPDT	Transmitter	Output signal: 4~20mADC
	max capacity: 20w, 60W, 120W		Output load:500Ω
	max Voltage: 230V, 250V		Power supply:16~30VDC
	max current: 0.5A,1A, 2A		Protection class: IP65
	life time: ≤1x109		Explosion-proof: ExiaII CT6Ga ExdII CT6Gb
	protection class: IP65
	explosion-proof: ExdII CT6Gb

Application:

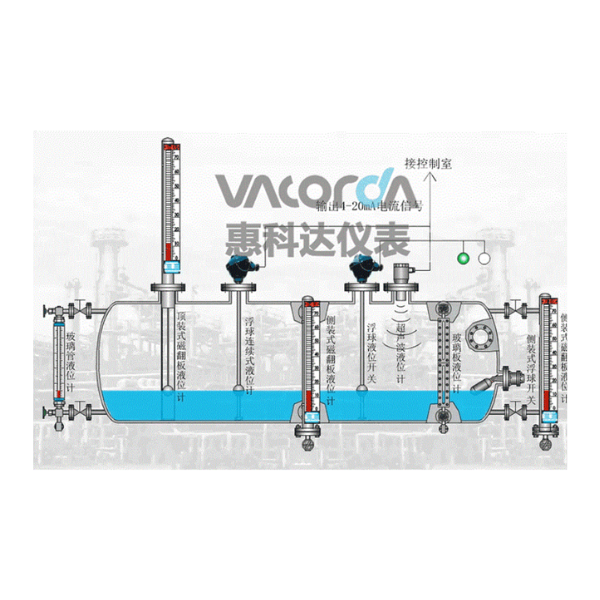

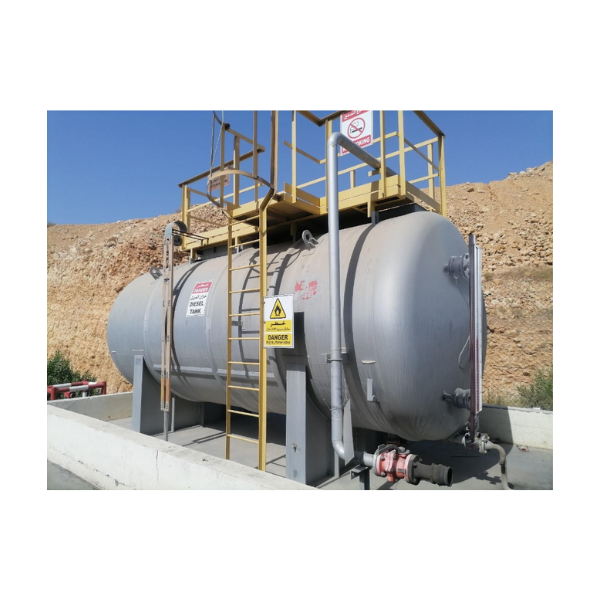

UHC series magnetic column liquid level gauge is widely used in petroleum, chemical industry, oil field, pharmaceuticals industry, food, wine industry etc., suitable for level measurements under the environment of high/low temperature., high pressure, strong corrosion, toxicity.
