Features
Features

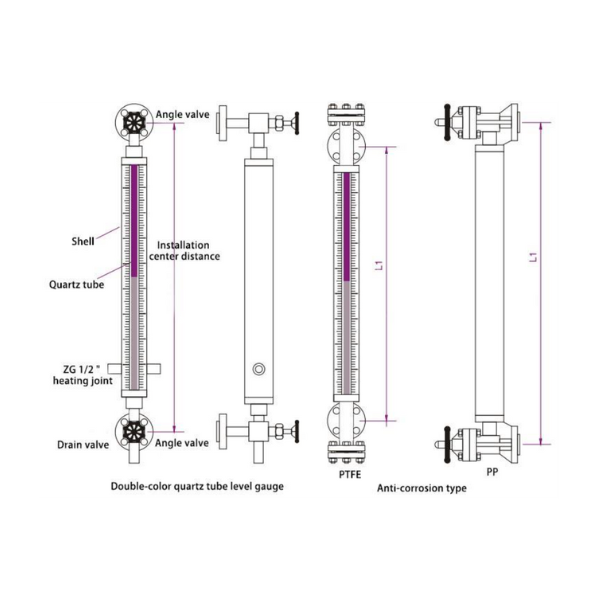

Structure
Technical Parameters
|
Center-Center Distance |
300, 500, 800, 1100, 1400,1700, 2000mm(custom made) |
|
Indicate Mode |
Single color, bi-color (red as vapor phases, green as liquid) |
|
Material |
Carbon steel, 304, 316L, 1Cr18Ni9Ti, 0Cr18Ni9, 304 with PTFE lining |
|
Nominal Pressure |
PN6-PN100(×0.1MPa) |
|
304 +PTFE≤PN40 |
|
|
PP≤100℃ |
|
|
Working Temperature |
Carbon steel ≤350℃ |
|
Stainless steel ≤450℃ |
|
|
304+PTFE ≤200℃ |
|
|
PP≤100℃ |
|
|
Drain Valve |
Drain needle valve (or customize) |
|
Vent Valve |
Vent needle valve (or customize) |
|
Process Flange |
DN20/RF HG/T 20592-09 |
|
The Heat Steam Interface |
ZG1/2＂male screw thread |
|
The Heat Steam Pressure |
≤1.0Mpa |
|
Eclectic Heating |
Self-limiting temperature heating (unnecessary for anticorrosive type) |
|
Steel Ball Self-Closing Pressure |
≥0.3Mpa |
|
Power Supply |
24V DC, 36V AC |
|
Environment Temperature |
-50~+80℃ |
